Voltage Division Practice

Practice question for ECE201: "Linear circuit analysis I"

By: Chinar Dhamija

Topic: Voltage Division


Question

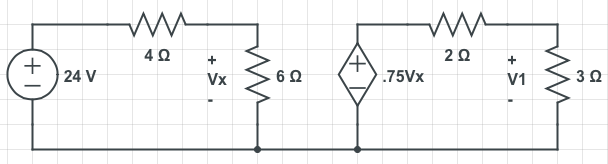

Find V1.

ECE201 P2.png


Answer

Bottom of the circuit is considered to be ground.
First we need to find Vx. Vx can be found by voltage division.

    Vx = 24(4 / (6 + 4))
         = 9.6 V

Now, find the voltage at the independent source.

    = .75 * 9.6
    = 7.2

Finally, solve for V1 by using voltage division again.

    V1 = 7.2(3 / (3 + 2))
         = 4.32 V

Questions and comments

If you have any questions, comments, etc. please post them below

  • Comment 1
    • Answer to Comment 1
  • Comment 2
    • Answer to Comment 2
